Product Colour Code:
Pair 1: Blue White/Blue
Pair 2: Orange White/Orange
Pair 3: Green White/Green
Pair 4: Brown White/Brown
Application：
• Meets or exceeds requirements of ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class D channel standards.
•Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC61156-5 Category 5e component standards.
•Meets requirements of IEEE802.3af and IEEE802.3at for. PoE applications.
•Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
•Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
•Meet UL CM/CMR/CMP As Request

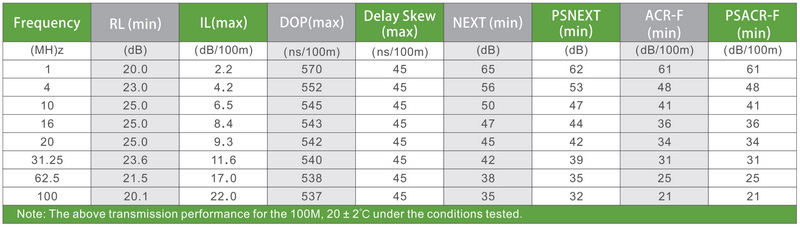

Electrical Characteristics：
•Impedance 1-100MHz 100±15(Ohms).
•Rated Temperature:75℃.
•DC Resistance Unbalance(%):Max 2.5.
•DC Resistance 20℃:9.5(Ohms/100m).
•Pair-to-Ground Capacitance Unbalance：330(Pf/100m).
•Insulation Resistance:＞5000MΩ*Km.
•Dielectric strength:DC 2500V 2S.
